- Cardboard Baler with Cross Cylinder
-
Usage
Specialized in compressing cardboards, paper, plastic scraps etc. Cross-cylinder design reduces the height of the balers, conveniently for transportation, installation and maintenance.Features
● Automatic bale ejector for quickly and easily ejecting the bales from the machine
● Cross-cylinder design reduces the height of the balers, conveniently for transportation, installation and maintenance
● The ram will stop running downwards when the feeding gate is opened which ensures the safety of the operation
● Equipped with independent emergency stop for safe operation
● Two hands are required for pressing the buttons when eject the bales out from the machine, ensures the safety of the operator
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● PLC control system ensures the uniform bale weight
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Equipped with cartridge valves that from USA, less space required for the installation
● Low noise design, ensures the noise no more than 70dbSpecifications
Model XTY-300LJ12080 XTY-500LJ12080 Pressure 30tons 50tons Feed opening size (L * H) 1050*550mm 1050*550mm Baling Chamber Height 1600mm 1700mm Bale Size(L*W*H,H is adjustable) 1200*800*(500-1000)mm 1200*800*(600-1100)mm Bale Weight 200-400kgs 300-500kgs Power 4kw 4/5.5kw Machine Weight 2200kgs 2800kgs Machine Overall Dimension 1800*1400*2300mm 1900*1500*2550mm
- Cans/PET Bottle Balers
-
Usage
Specially used for recycling the cans, PET bottles, oil tank etc. The long ram makes sure the bottles or cans that in the bottom can be efficiently compressed. Liquid receiver is optional for collecting the liquid residues from the compressing containers.Features
● Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
MODEL XTY-300KL8060 XTY-400KL10060 XTY-500KL11070 XTY-800KL12080 Pressure 30tons 40tons 50tons 80tons Feed opening size(L * H) 800*500mm 1000*500mm 1100*500mm 1200*500mm Baling Chamber Height 1500mm 1500mm 1500mm 1700mm Bale Size(L*W*H,H is adjustable) 800*600*(200-1000)mm 1000*600*(300-1000)mm 1100*700*(300-1000)mm 1200*800*(300-1200)mm Bale Weight 30-120kgs 60-180kgs 90-270kgs 200-380kgs Power 5.5kw 7.5kw 11kw 15kw Machine Weight 1400kgs 1700kgs 1900kgs 2500kgs Machine Overall Dimension 1280*850*3300mm 1480*1000*3400mm 1600*1100*3500mm 1700*1200*3900mm
- Textile/Clothes Balers
-
Usage
Widely applied by second-hand clothes recycling plants for compressing clothing, comforters, shoes etc. Hydraulic lifting chamber door improves the work efficiency, conveniently for packaging and the tight crossed tying.Features
● Hydraulic lifting chamber door improves the work efficiency, conveniently for packaging and the ‘# ‘tying
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
MODEL XTY-300LTX6040 XTY-500LTX7555 XTY-1500LTX11080 Pressure 30tons 50tons 150tons Feed Opening Size(L*H) 600*400mm 750*350mm 1100*600mm Baling Chamber Height 1300mm 1850mm 1850mm Bale Size(L*W*H,H is adjustable) 650*450*(400-600)mm 800*600*(400-550)mm 1150*850*(500-900)mm Bale Weight 40-60kgs 80-120kgs 300-400kgs Power 5.5kw 11kw 18.5kw Machine Weight 1800kgs 2800kgs 6000kgs Machine Overall Dimension 1250*800*3700mm 1550*1000*4200mm 2000*1450*4300mm
- Paper/Carton Balers
-
Usage
Specially designed for recycling waste cardboards, cartons and newspaper etc. Equipped with wide feed opening door which lifts upwards automatically when the platen goes up, improves the work efficiency and save labor cost. Widely used by super markets, waste recycling centers etc.Features
● Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
● Wide feed opening door lifts upwards automatically when the platen goes up
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Equipped with superimposed valves that from Taiwan, , less space required for the installation
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model XTY-300LE11070 XTY-400LE12080 XTY-500LE15076 XTY-600LE180100 Pressure 30tons 40tons 50tons 60tons Feed Opening Size(L*H) 1100*500mm 1200*500mm 1500*500mm 1800*500mm Baling Chamber Height 1400mm 1500mm 1500mm 1600mm Bale Size(L*W*H,H is adjustable) 1100*700*(500-900)mm 1200*800*(600-1000)mm 1500*760mm*(600-1000)mm 1800*1000*(350-1050)mm Bale Weight 150-250kgs 200-400kgs 300-500kgs 250-700kgs Power 7.5kw 7.5kw 7.5kw 15kw Machine Weight 1900kgs 2200kgs 2800kgs 3500kgs Machine Overall Dimension 1500*1050*2900mm 1600*1150*3000mm 2000*1150*3100mm 2260*1350*3520mm
- PP/PE Film/Soft Plastic Balers
-
Usage
Widely used for compressing soft plastics like PE/PP Films. With the going down of the longer ram, the fluffy soft plastics will be efficiently compressed.Features
● Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
● Wide feed opening door lifts upwards automatically when the platen goes up
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model XTY-500LE12080 Pressure 50tons Feed Opening Size(L*H) 1200*500mm Baling Chamber Height 1500mm Bale Size(L*W*H,H is adjustable) 1200*800*(400-1000)mm Bale Weight 150-350kgs Power 11kw Machine Weight 2300kgs Machine Overall Dimension 1650*1200*3300mm
- Small Vertical Balers
-
Usage
Specially used for compressing the waste like food residue, paper, bottles, cans, plastic scraps and textile waste etc. The compact machine body ensures it only require less installation space, which is the favor of the vessels, hotels, resorts and factories etc. Bottom liquid receiver is optional for collecting the liquid from the compressing materials.Features
● Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
● Bottom liquid receiver is optional for collecting the liquid from the compressing materials
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Equipped with integrated valves that from Taiwan, conveniently for the maintenance
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model SX-50LA6040 SX-100LA6040 SX-200LA8060 Pressure 5tons 10tons 20tons Feed Opening Size(L*H) 600*400mm 500*300mm 700*400mm Baling Chamber Height 450mm 800mm 1000mm Bale Size(L*W*H,H is adjustable) 600*400*(200-600)mm 600*400*(200-600)mm 800*600*(400-800)mm Bale Weight 20-40kgs 15-50kgs 60-120kgs Power 1.5kw 2.2kw 3kw Machine Weight 450kgs 800kgs 1000kgs Machine Overall Dimension 900*570*2240mm 1000*800*2250mm 1180*800*2550mm
- Car Bumper/Plastic Pallet Balers
-
Usage
Specially designed for compressing rigid plastics like car bumpers, plastic pallets etc. The solid structure and high pressure makes sure the rigid materials are easily to be compressed. Automatic hydraulic ejecting system ensures the heavy bales are easily ejected out from the chamber.Features
● Automatic hydraulic cylinder bale ejector for quickly and easily ejecting the bales out from the machine
● Large volume of compressing chamber for receiving large size materials
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with right-angle opening door design, convenient for ‘#’ tying
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model XTY-1500LB125110 XTY-2000LB125110 Pressure 150tons 200tons Feed Opening Size(L*H) 1250*700mm 1250*700mm Baling Chamber Height 1700mm 1700mm Bale Size(L*W*H,H is adjustable) 1250*1100*(200-1000)mm 1250*1100*(200-1000)mm Bale Weight 200-500kgs 250-600kgs Power 18.5kw 22kw Machine Weight 6000kgs 8000kgs Machine Overall Dimension 1700*2800*4000mm 1800*3000*4200mm
- Aluminum Alloy Frame Balers
-
Usage
Widely used for compressing aluminum alloy frames etc. The wide feed opening door makes sure the longer frames can be easily thrown into the chamber for compressing.Features
● Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model XTY-1200LA12080 XTY-1500LA15076 Pressure 120tons 150tons Feed Opening Size(L*H) 1200*500mm 1500*600mm Baling Chamber Height 1500mm 1600mm Bale Size(L*W*H,H is adjustable) 1200*800*(400-1000)mm 1500*760*(400-1000)mm Bale Weight 80-200kgs 100-250kgs Power 15kw 18.5kw Machine Weight 4500kgs 5500kgs Machine Overall Dimension 1700*1100*3600mm 2200*1300*3800mm
- Fiber Balers
-
Usage
Specially used for compressing all kinds of nature fiber like palm fiber, coir fiber etc. The front and back opening door design for easily strapping and ejecting the bales out from the chamber.Features
● Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
● Frond and back opening doors designs, conveniently for strapping
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model XTY-1500LF11042 XTY-1500LF12080 Pressure 150tons 150tons Feed Opening Size(L*H) 1100*1400mm 1200*500mm Baling Chamber Height 2400mm 1500mm Bale Size(L*W*H,H is adjustable) 1100*400*(400-1000)mm 1200*800*(400-1000)mm Bale Weight 70-180 kgs 100-250kgs Power 18.5kw/22kw 18.5kw/22kw Machine Weight 4500 5000kgs Machine Overall Dimension 1800*1450*1300mm 3500*1300*3500mm
- Bin baler
-
Usage
Specially used for pressing the wastes inside the bin, which efficiently reduce the number of bins by over 50%, save a large number of space.Features
● By using XTpack bin baler, large bulky rubbish can be reduce to a fraction of its size, help the user to save money on bin collection
● Keep a clean and friendly environment
● Bin baler can be customized to various bin sizes from 660L to 1100LSpecifications
Model XTBP-660L Machine dimension(L*W*H) 1240*1120*1780mm Pressing force 4tons Transport machine size(L*W*H) 1300*1200*1600mm Voltage customized Power 1.1kw Pressing capacity 70% Using with 600L bin
- Restaurant Garbage Compactor
-
Usage
Specially used for compressing the waste like food residue, paper, plastics, disposable tableware etc. which widely applied by the vessels, drilling platform, island, harbor, restaurant and hotels etc.Features
● Professional design can meet various applications needs;
● Equipped with anti-virus and drying function device;
● Microcomputer control, automatically detect and run;
● Micro sensor monitoring effectively prevent operators from damage;
● Equipped with only two buttons for the convenience of operation;
● Machine's frame is strong and powerful for odious environment;
● Machine's volume is small with specialized cylinder;
● Raw material for the whole frame and outside cover is stainless steel to avoid corrosion and rust;Specifications
Model XTY-1A XTY-3A Dimension(H*W*L) 1400mm*500mm*450mm 1677mm*556mm*555mm Baling chamber size/trash chamber size/trash size(after compressing) 0.13m3/0.05m3/0.051m3 0.200m3/0.095m3/0.090m3 Power 220VAC/50HZ
230VAC/60HZ220VAC/50HZ
230VAC/60HZHydraulic Power Unit 750W 1100W Pressure/Maximum Pressure 500-800KG/1000KG 3000KG/5000KG Machine Material Stainless Steel Stainless Steel Compressing Circle 35S 60S Compressing Rate 5:1-10:1 Maximum 20：1 Trash Size( After compressing) 50L 70L Machine Weight 165KG 200KG Trash Bale Weight 20~30KG 30KG-50KG Daily baling capacity 3000Kg/day 5000Kg/day Insulation Resistance Yes Yes
- Antiexplosion and dedusting Balers
-
Usage
1. Applied for explosive gas atmosphere 1 zone 2 zone
2. Applied for combustible dust atmosphere 20 zone 21 zone 22 zone
3. Applied for explosive gas atmosphere with IIA, IIB, IIC grades
4. Applied for atmosphere with temperature class from T1-T6
5. Applied for explosion risk environment like textile,medical,chemical,oil mining smelting,storage,military and military facilities,etc.
6. Applied for baling the waste with toxic and harmful gas or dust,conform with OHSAS18000 standardsFeatures
● Employing Japanese NOK seals
● Employing Japanese A.M.C oil pipe joint
● Employing Taiwan Seven Ocean valve block
● Employing Taiwan Seven Ocean cylinder
● Hydraulic oil tank designed on top, more convenient for assembling
● Applied for anti-explosion motor
● Special ram guides design makes the platen not slop because of uneven materials feeding during compression
● Conform to the environmental standards, CE certification
● Open door structure designed with slowly pressure releasing, more safety and reliable
● Applied for anti-explosion hydraulic system, anti-explosion electric control box
● Anti-explosion level: motor EX TD A21 T135℃；Motor DIPA20TA Exed II CAT6
● Execution standard: GB3836.1 GB3836.2 GB3836.3 GB12476.1 IEC60079 OHSAS18001Specifications
Model XTY-300LA11070EX Pressure force 30 Tons Bale size L1100*W700*H550-900 Feed opening size L1100*W500 Power 5.5KW Bale weight 150-250kg Machine’s size L1500*W1050*H2900mm
- Dust Balers
-
Usage
Specially in compressing the dust dropped from the bag-typed dust collecting device.It solves the bagging and transportation problem when the dust is on second transportation.And it can also save 80% carbon emission.Features
● CE certified
● Equipped with Japanese Valve
● Equipped with Taiwan Cylinder
● Equipped with Schneider Motor
● Equipped with Japanese oil pipe jointsSpecifications
MODEL XT-FT-CDB90 XT-FT-CDB90D XT-FT-CDB140D Pressing Power 15Ton 15Ton 15Ton Packaging size D 90mm D 90mm D 140mm feed opening size 1200mm 1200mm 1200mm Baling chamber in D 1200mm D 1200mm D 1200mm Output per hour in Bales 10kg/h 15kg/h 60kg/h Voltage 200-440V 200-440V 200-440V Power 4kw 4kw 5.5kw Feeding Motor Power 1.5kw 1.5kw 1.5kw Weight 1200kg 1200kg 1300kg Dimension (L *W *H) 2700*1400*1100mm 2700*1400*1100mm 2700*1400*1100mm
- Twin Chamber Balers
-
Usage
Specially used for compressing the waste like food residue, paper, plastics and textile etc. Which widely applied by the vessels, hotels,resorts and factories etc.Features
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that imported from Japan ensures the machine far away from oil leakage problems
● Large size feed opening and baling chamber for easier loading
● Packaging slot on the door for convenience of observation and packing
● Double chamber for different materials with higher efficiencySpecifications
Model XTY-30L7050-D Pressure 3tons Feed opening size (L * H) 700*500mm Baling Chamber Height 700*500*728mm Bale Size 700*500*（150-400）mm Bale Weight 30-60kgs Power 0.75KW Machine Weight 500kg Machine Overall Dimension 1600*560*1750mm

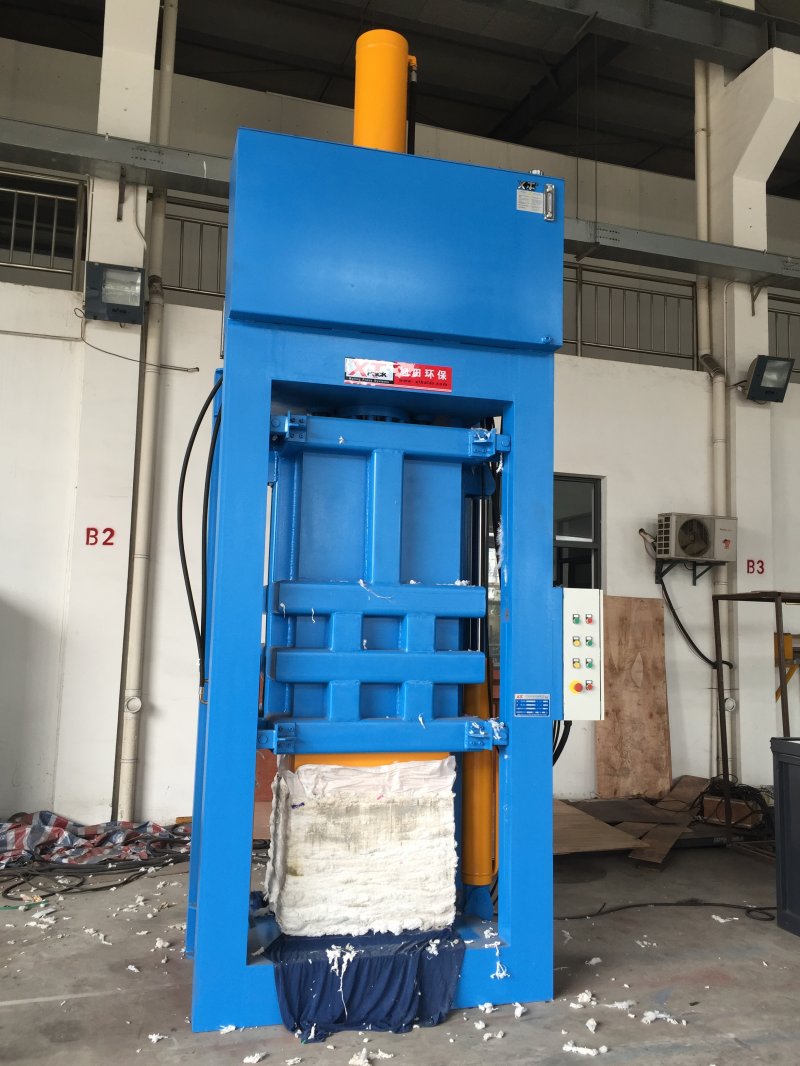

- Vertical Cotton Baler
-
Usage
Widely applied for compressing the cotton in the cotton recycling factory.Features
● Hydraulic lifting chamber door improves the work efficiency, conveniently for packaging and the ‘# ‘tying
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pumpSpecifications
Model XTY-1500LTX11080 Pressure 150tons Feed Opening Size(L*H) 1100*600mm Baling Chamber Height 1800mm Bale Size(L*W*H,H is adjustable) 1100*800*(600-9000)mm Bale Weight 300-400kgs Power 18.5kw Machine Weight 6000kgs Machine Overall Dimension 1800*1000*3950mm

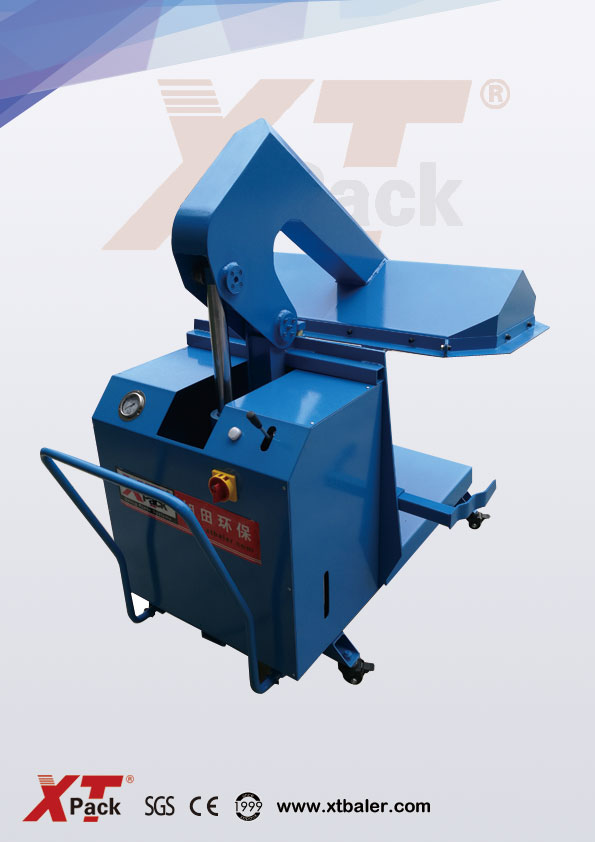

- Vertical Cutting Baler
-
Usage
Specially used for cutting the materials like various rubber, plastic, plastic films, etc. into small pieces.Features
● ith European safety standard ensures the safety of the operation;
● Unique double-cutting design of cutters improves the cutting efficiency and lengthens the service life of the cutters;
● Equipped with independent emergency stop for safe operation;
● Equipped with NOK seals that from Japan means longer lifespan of the seals;
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems;
● Equipped with Taiwan imported hydraulic system.Specifications
Model XTY-1000L XTY-1500L Pressure 80tons 150tons Power 15kw 22kw Baling Chamber Height 1030mm 1530mm Feed Opening Size (L*H) 1000*1030mm 1500*1530mm Machine Weight 3000kgs 4000kgs Machine Size(L*W*H) 1340*1400*3000mm 1900*1400*4300

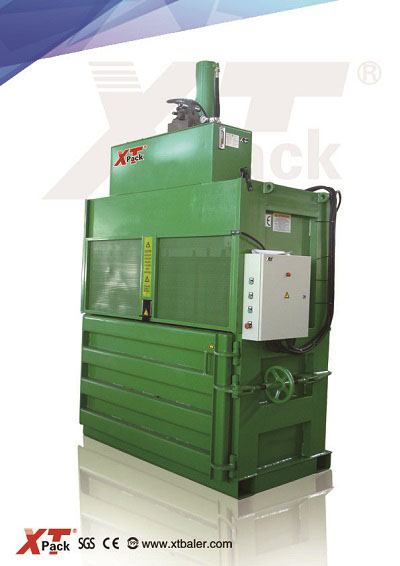

- Vertical Marine Balers
-
Usage
Specially used for compressing the waste like food residue, paper, plastics, disposable tableware etc. which widely applied by the vessels, drilling platform, island, harbor, restaurant, hotel and hospital etc.Features
● Machine's frame is strong and powerful for odious environment
● Equipped with stainless inner box to avoid corrosion
● The machine with professional enclosed design to avoid dust in
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problemsSpecifications
Model XTY-50LA6545 Pressure 5tons Feed Opening Size(L*H) 540*300mm Baling Chamber Height 810mm Inner box size 536*426*500mm Power 1.5kw Machine Weight 500kgs Machine Overall Dimension 700*500*1958mm
- Four-Column Compressing Machine
-
Usage
Specially used to compress generator's rotor into its cover/shellFeatures
● Each movement has corresponding sensors for resetting and setting, it can’t move to next step if the last movement not be finished.
● The machine won’t start when the safety gate is open for security needs.
● Specially designed the buttons for fast upwards, fast downwards and slow downwards.When reach to certain pressure, the platen will automatically go down slowly which ensures the efficiency and safety of operationSpecifications
Model XTY-400LW6565 Pressure 40tons Cylinder Diameter ф150/115mm Stroke 650 mm Valid working height 1500mm Valid working area 650*650mm Machine Overall Dimension(L*W*H) 950*1680*4251mm Motor Power 7.5KW Pump type HY-32Y-RP

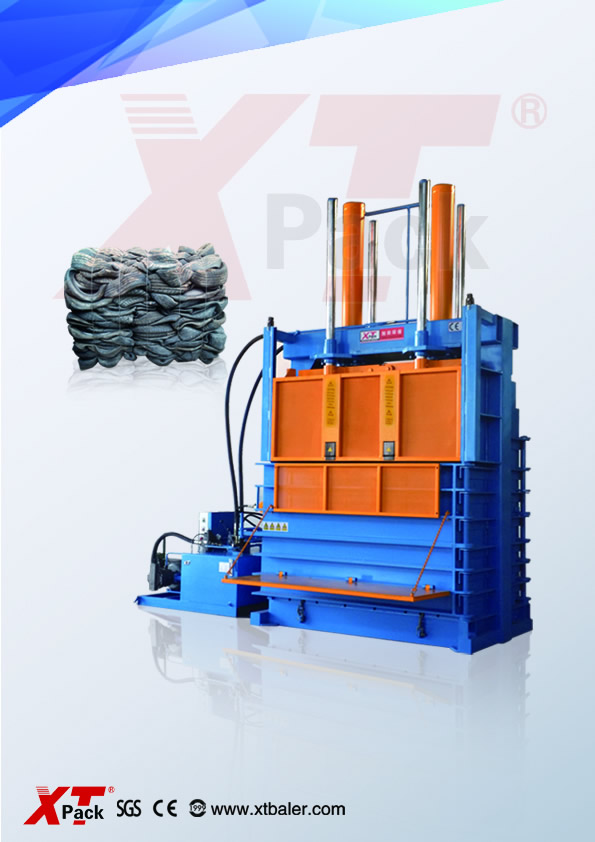

- Tire Baler
-
Usage
Specially designed for compressing rubber products like car tires, truck tires, bus tires etc.Features
● Hydraulic-driven opening door ensures operational safety and easier opening& closing
● Two split platens with movable links to protect the platen from being distorted when pressing uneven materials like rubber tire etc
● Whole system manual control to make sure durability and simple operation
● Retractable retainer claws prevent the compacted bales to rebound
● Employ whole set Taiwan hydraulic system
● Mainly use Schneider electric components
● Employ Japanese A.M.C. oil pipe joint makes sure no oil leakage
● Auto chain bale ejector for easy operation and greater efficiency ( the bale can be automatically ejected out by the lifting chains)
● Front & Back opening doors for convenient strapping and bale ejectingSpecifications
Model XTY-1200LF15379 XTY-1200LF210120 Pressure 120tons 120tons Power 15kw 22kw Baling Chamber Size(L*W*H) 1530*790*1800mm 2100*1200*2100mm Bale Size(L*W*H， H is adjustable) 1530*790*(500-1200)mm 2100*1200*(700-1400)mm Bale Size(L*W*H) After expansion 1600*850*1200mm 2200*1300*1400mm Bale Weight 1tons 1.9tons Machine Weight 7tons 12tons Machine Size(L*W*H) 3734*1098*3700mm 4231*1510*4300mm
