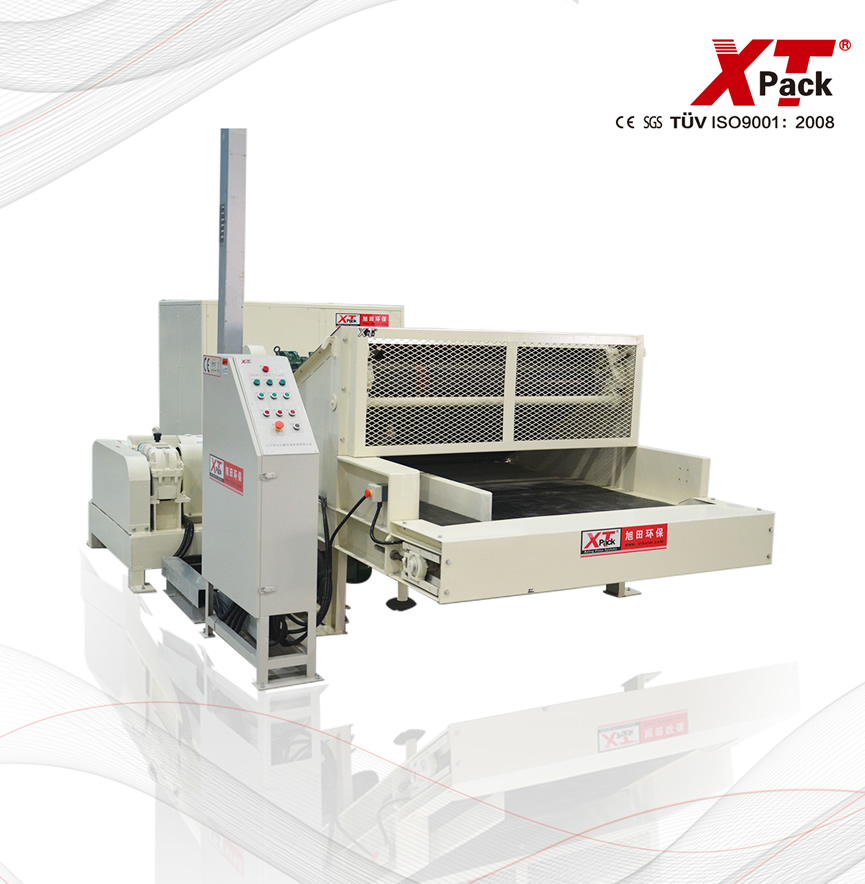

- Cardboard Shredder
-
¡¡
Usage
Specially used for shredding waste paper, cardboard or carton.Features
¡ñ¡¡Equipped with High-Strength conveyor for feeding
¡ñ¡¡Equipped with gear reducer of strong torque force
¡ñ¡¡Equipped with 52 pieces of strong white-steel blades, durable and convenirnt for changing
¡ñ¡¡Equipped with safety design to protect the operators
¡ñ¡¡With European standard safety design
¡ñ¡¡With German technologySpecifications
Model XPS-1450 Maximum Feeding Width 1450mm Paper Conveying MOtor Power 2.2kw Waste Compressing Conveyor Motor Power 1.5kw Paper Shredding Motor Power 22kw Shredding Fan Power 18.5kw Handling Capacity 2000kgs/h Machine Weight 3000kgs Machine Size (including size of shredding fan) 6600*2400*1700mm
- Paper core/tube shredder
-
¡¡Usage
Square tube cutting machine,machine for cylinder paper cutting,tube cutting machine.Features
¡ñ¡¡Adapt gear speed reducer with high torque.
¡ñ¡¡Adapt high hardness knives which is durable,adjustable and convenient.
¡ñ¡¡Adapt Germany technology with safe design and protect the security of the operator.
¡ñ¡¡ The output material can come out physically and connected with conveyor directly or come out by blowers which can be connected with cyclones.
¡ñ¡¡The material can be feeded by multi-operator with high efficiency.
¡ñ¡¡Capacity:2000kg/hSpecifications
XPS-600 A B C Power 22kw 18.5kw 15kw Core Diameter
Feed opening100mm
150mm
100-200mm100mm
150mm100mm
100mmCapacity 2000kg/h 1500kg/h 1000kg/h
- Cardboard & Paper Core Shredder
-
¡¡Usage
Specially used for shredding waste cardboard, paper, box and paper core etc.Features
¡ñ¡¡Equip with 10mm thickness rubber belt with high strength
¡ñ¡¡The flatten belt auto adjusted by the feeding board thickness,in the meantime,maximum thickness is set, when feeding thickness too much or any person fell onto belt, machine immediately stop.
¡ñ¡¡Equipped with gear reducer of strong torque force
¡ñ¡¡Equipped with 52pieces of strong white-steel blades, durable and convenient for changing
¡ñ¡¡Each blade has two edges, if one edge wore, then install reversed edge
¡ñ¡¡Safety design to protect operators
¡ñ¡¡Equip with German technologySpecifications
Model XPRS-1800 Maximum cardboard Feeding Width 1450mm Maximum Paper Core Diameter 180mm Maximum Paper Core Thickness 20mm Maximum Cardboard Thickness 80mm Blade shaft rolling speed 480r/min Belt Delivery speed 35m/min Paper Conveying Motor Power 2.2kw Waste Compressing Conveyor Motor Power 1.5kw Paper Shredding Motor Power 22kw Shredding Fan Power 22kw Handling Capacity 2000tons/h Machine Weight 3500kgs Machine Size 6600*2900*1700mm
