Horizontal BalersHome››Products››Horizontal Balers

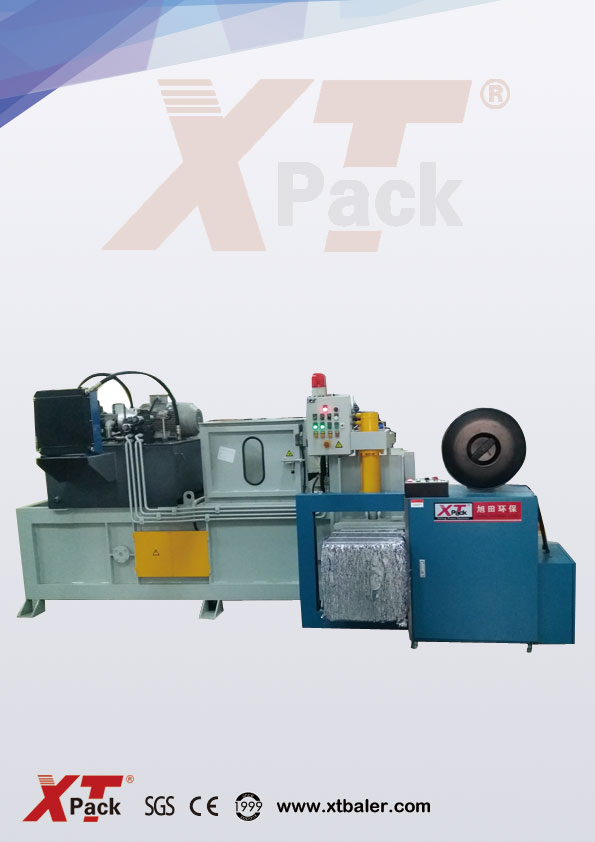

Full Automatic Two Ram Baler
Full Automatic Two Ram Baler

¡¡

Usage

Specialized in recycling and compressing the waste paper, plastic film, fabric etc, convenient for storage, saving labor cost.

Features

¡ñ Automatically compressing and baling, using PP strap to reduce baling material cost
¡ñ Automatically compressing and baling, using PP strap to reduce baling material cost
¡ñ Cyclone system or conveyor could both be the optional for feeding

Specifications

Model XTR-200W5050P XTR-400W7575P
Pressure 20tons 40tons
Motor Power 7.5kw 15kw
Oil Tank Volume 160L 540L
Feed Opening Size(L*W) 500*480mm 1100*730mm
Bale Size(L*W*H) 500*500*500mm 750*750*750mm
Bale weight 30~70kgs 70~150kgs
Number Of Belting 3line 3-5lines
Machine Overall Dimension(L*W*H) 3212*2600*1630mm 4650*3010*2430mm
Machine Weight 2.5tons 4.5tons

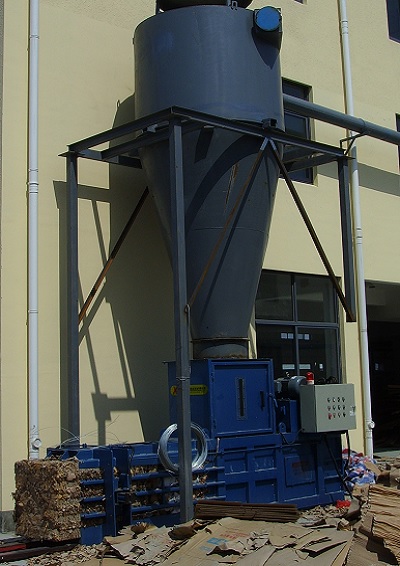

Small-sized Full Automatic Balers with Cyclone for Packaging Plants
Small-sized Full Automatic Balers with Cyclone for Packaging Plants

¡¡

Usage

Specially used for recycling waste paper, cartons, cardboard trims/scraps etc. which are popular in packaging and corrugation industrial, as well as in printing plants etc.

Features

¡ñ¡¡ Powerful cyclone is optional for rapid sucking trims/scraps from the corrugation production line
¡ñ¡¡ Photoelectric switch activates baler when charge box is full
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ Equipped with rapid automatic tying system, easy for cleaning and maintaining
¡ñ¡¡ Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
¡ñ¡¡ Automatic tension system ensures ¡°brick-like¡± bales on all loose materials
¡ñ¡¡ Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
¡ñ¡¡ Automatically detect and show the errors of the machine which improve the machine inspection efficiency
¡ñ¡¡ International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installation

Specifications

Model XTY-200W5050-10 XTY-400W7575-20 XTY-400W7280-20 XTY-600W7585-25
Pressure 20tons 40tons 40tons 60tons
Main Motor Power 7.5kw 15kw 15kw 18.5kw
Cooling System air cooler / water cooler air cooler / water cooler air cooler / water cooler air cooler / water cooler
Cycle Time (unload) 19s 20s 20s 16s
Oil Reservoir 280L 540L 540L 600L
Number of Belting 3lines 3lines 4lines 4lines
Wire Size Ø2.4-2.7 Ø2.4-2.7 Ø2.4-2.7 Ø2.4-2.7
Feed Opening Size (L*W) 625*480mm 1200*720mm 1200*690mm 1200*720mm
Chamber Size (L*W*H) 900*500*500mm 1600*750*750mm 1600*720*800mm 1600*750*850mm
Bale Size (L*W*H, L is adjustable) L*500*500mm L*750*750mm L*720*800mm L*750*850mm
Bale Density £¨OCC£© 350-450kgs/m3 350-450kgs/m3 350-450kgs/m3 380-480kgs/m3
Throughput (30-60kgs/m3) 1-1.5tons/h 1.5-3tons/h 1.5-3tons/h 2.5-5tons/h
Machine Weight 3tons 7tons 7tons 8tons
Machine Overall Dimension 3600*2500*1650mm 5950*3200*2500mm 5950*3200*2500mm 6100*3250*2500mm
Feeding Device cyclone / conveyor cyclone / conveyor cyclone / conveyor cyclone / conveyor

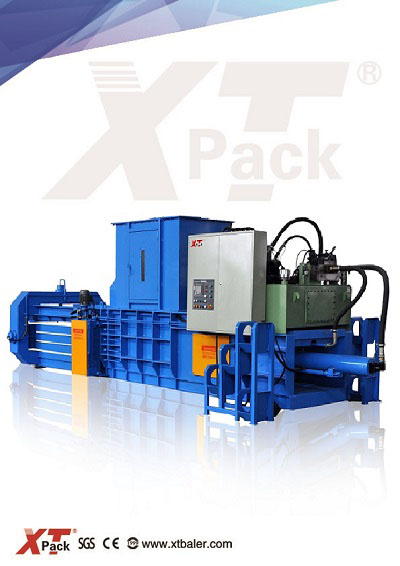

Medium-sized Full Automatic Balers
Medium-sized Full Automatic Balers

¡¡

Usage

Widely used for compressing waste cardboards, cartons, paper, plastic film, straw etc.which are popular in packaging and corrugation industrial, bear breweries, recycling center as well as in printing plants etc. Conveyor is optional for conveniently feeding the waste to the chamber.

Features

¡ñ¡¡ Photoelectric switch activates baler when charge box is full
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ Equipped with rapid automatic tying system, easy for cleaning and maintaining
¡ñ¡¡ Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
¡ñ¡¡ Automatic tension system ensures ¡°brick-like¡± bales on all loose materials
¡ñ¡¡ Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
¡ñ¡¡ Automatically detect and show the errors of the machine which improve the machine inspection efficiency
¡ñ¡¡ International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installation

Specifications

Model XTY-600W11075-30 XTY-800W11075-50
Pressure 60tons 80tons
Main Motor Power 22kw 37.5kw
Cooling System air cooler / water cooler air cooler / water cooler
Cycle Time (unload) 24s 16s
Oil Reservoir 1000L 1100L
Number of Belting 4lines 4lines
Wire Size Ø2.7-3.0 Ø2.7-3.0
Feed Opening Size (L*W) 1600*1050mm 1600*1050mm
Chamber Size (L*W*H) 2100*1100*750mm 2100*1100*750mm
Bale Size (L*W*H, L is adjustable) L*1100*750mm L*1100*750mm
Bale Density £¨OCC£© 400-500kgs/m3 420-500kgs/m3
Throughput (30-60kgs/m3) 3-7tons/h 4-8tons/h
Machine Weight 13tons 14tons
Machine Overall Dimension 7950*3950*3500mm 8100*3900*3500mm
Feeding Device Conveyor Conveyor
Conveyor
Feeding Width 1600mm 1600mm
Speed 12m/min 12m/min
Power 4/5.5KW 4/5.5KW
Weight 5tons 5tons
Overall Dimension 9000*2100*4500mm 9000*2100*4500mm

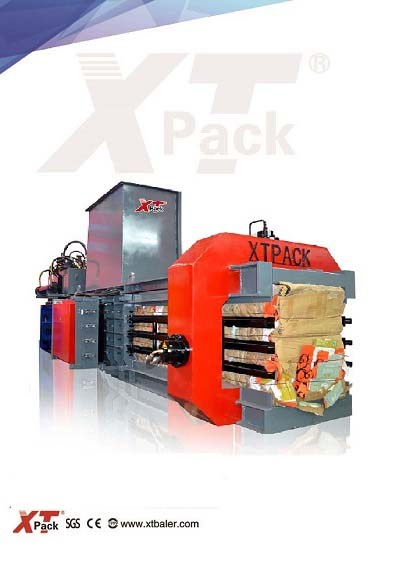

Large-sized Full Automatic Balers
Large-sized Full Automatic Balers

¡¡

Usage

Specialized in recycling and compressing the loose materials like waste paper, cardboards, cartons, waste books, magazines, plastic film, natural fiber and straw etc. with high production. Adjustable bales length and bales quantity accumulating function ensure conveniently operation.. Scatter is optional for scattering newspaper, books and magazines when they are conveyed into the chamber.

Features

¡ñ¡¡ Photoelectric switch activates baler when charge box is full
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ Equipped with rapid automatic tying system, easy for cleaning and maintaining
¡ñ¡¡ Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity
¡ñ¡¡ Automatic tension system ensures ¡°brick-like¡± bales on all loose materials
¡ñ¡¡ Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient
¡ñ¡¡ Automatically detect and show the errors of the machine which improve the machine inspection efficiency
¡ñ¡¡ International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic system from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installation

Specifications

Model XTY-1000W11080-60 XTY-1000W11080L-60 XTY-1000W110110-60 XTY-1000W110110L-60
Pressure 100tons 100tons 100tons 100tons
Main Motor Power 45kw 45kw 45kw 45kw
Cooling System air cooler / water cooler air cooler / water cooler air cooler / water cooler air cooler / water cooler

< Cycle Time (unload)

 14s 16s 14s 16s
Oil Reservoir 1600L 1600L 1600L 1600L
Number of Belting 4lines 4lines 5lines 5lines
Wire Size Ø3.0-3.2 Ø3.0-3.2 Ø3.0-3.2 Ø3.0-3.2
Feed Opening Size (L*W) 1600*1050mm 1800*1050mm 1600*1050mm 1800*1050mm
Chamber Size (L*W*H) 2100*1100*800mm 2400*1100*800mm 2100*1100*1100mm 2400*1100*1100mm
Bale Size (L*W*H, L is adjustable) L*1100*800mm L*1100*800mm L*1100*1100mm L*1100*1100mm
Bale Density £¨OCC£© 450-550kgs/m3 450-550kgs/m3 450-550kgs/m3 450-550kgs/m3
Throughput (30-60kgs/m3) 5-9tons/h 5-10tons/h 6-11tons/h 6-12tons/h
Machine Weight 15tons 16tons 17tons 18tons
Machine Overall Dimension 8500*4000*4200mm 9100*4000*4200mm 8700*4000*4200mm 9300*4000*4200mm
Feeding Device Conveyor Conveyor Conveyor Conveyor
Conveyor
Feeding Width 1600mm 1800mm 1800mm 1600mm
Speed 12m/min 12m/min 12m/min 12m/min
Power 7.5KW 7.5KW 7.5KW 7.5KW
Weight 6tons 7tons 6tons 7tons
Overall Dimension 11000*2100*5200mm 11000*2300*5200mm 11000*2100*5200mm 11000*2300*5200mm
Scatter (Used for the machines that compress the newspaper)
Motor 11KW



Model XTY-1250W110110-75 XTY-1250W110110L-75 XTY-1250W110125-75 XTY-1250W110125L-75
Pressure 125tons 125tons 125tons 125tons
Main Motor Power 55kw 55kw 55kw 55kw

Cycle Time (unload)

 15s 17s 15s 17s
Oil Reservoir 1900L 1900L 1900L 1900L
Number of Belting 5lines 5lines 5lines 5lines
Wire Size Ø3.0-3.4 Ø3.0-3.4 Ø3.0-3.4 Ø3.0-3.4
Feed Opening Size (L*W 1600*1050mm 1800*1050mm 1600*1050mm 1800*1050mm
Chamber Size (L*W*H) 2100*1100*1100mm 2400*1100*1100mm 2100*1100*1250mm 2400*1100*1250mm
Bale Size (L*W*H, L can be adjustable) L*1100*1100mm L*1100*1100mm L*1100*1250mm L*1100*1250mm
Bale Density (OCC) 400-500kgs/m3 400-500kgs/m3 400-500kgs/m3 400-500kgs/m3
Throughput( (30-60kgs/m3£© 7-13tons/h 7-14tons/h 8-15tons/h 8-16tons/h
Machine Weight 19tons 20tons 21tons 22tons
Machine Overall Dimension 9000*4100*4200mm 9600*4100*4200mm 9000*4100*4200mm 9600*4100*4200mm
Feeding Device Conveyor Conveyor Conveyor Conveyor
Conveyor
Feeding Width 1600mm 1800mm 1800mm 1600mm
Speed 12m/min 12m/min 12m/min 12m/min
Power 7.5KW 7.5KW 7.5KW 7.5KW
Weight 6tons 7tons 6tons 7tons
Overall Dimension 11000*2100*5200mm 11000*2300*5200mm 11000*2100*5200mm 11000*2300*5200mm
Scatter (Used for the machines that compress the newspaper)
Motor 11KW



Model XTY-1500W110110-150 XTY-1500W110125-150 XTY-1500W110110L-180 XTY-1500W110125L-180
Pressure 150tons 150tons 150tons 150tons
Main Motor Power 55kw*2 55kw*2 45kw*3 45kw*3
Cooling System water cooler water cooler water cooler water cooler

Cycle Time (unload)

 12s 12s 11s 11s
Oil Reservoir 2600L 2600L 3500L 3500L
Number of Belting 5lines 5lines 5lines 5lines
Wire Size Ø3.4-3.6 Ø3.4-3.6 Ø3.4-3.6 Ø3.4-3.6
Feed Opening Size (L*W) 2000*1050mm 2000*1050mm 2200*1050mm 2200*1050mm
Chamber Size (L*W*H) 2600*1100*1100mm 2600*1100*1250mm 2800*1100*1100mm 2800*1100*1250mm
Bale Size (L*W*H, L can be adjustable) L*1100*11000mm L*1100*250mm L*1100*1100mm L*1100*1250mm
Bale Density (OCC) 550-600kgs/m3 550-600kgs/m3 550-600kgs/m3 550-600kgs/m3
Throughput (30-60kgs/m3£© 15-20tons/h 17-25tons/h 19-28tons/h 20-30tons/h
Machine Weight 30tons 32tons 34tons 35tons
Machine Overall Dimension 11600*4200*6000mm 11600*4200*6000mm 12000*4200*6000mm 12000*4200*6000mm
Feeding Device Conveyor Conveyor Conveyor Conveyor
Conveyor
Feeding Width 2000mm 2000mm 2200mm 2200mm
Speed 12m/min 0-12m/min 0-12m/min 0-12m/min
Power 11KW 11KW 11KW 11KW
Weight 14tons 14tons 14tons 14tons
Overall Dimension< /td> 18000*2500*7200mm 18000*2500*7200mm 18000*2500*7200mm 18000*2500*7200mm
Scatter (Used for the machines that compress the newspaper)
Motor 15KW

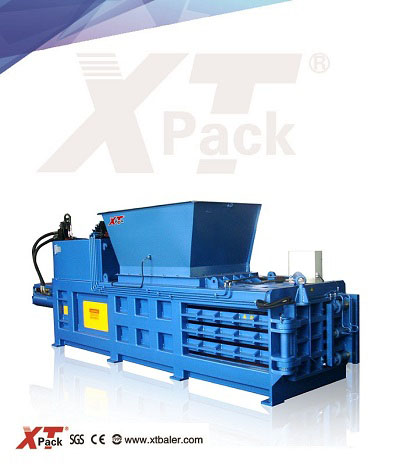

Medium-sized Semi Automatic Balers with Closed Gate
Medium-sized Semi Automatic Balers with Closed Gate

¡¡

Usage

Specialized in compressing plastic film, plastic scraps, waste paper, cartons, cardboards trims/scraps, etc.

Features

¡ñ¡¡ Heavy duty close-gate design for more tighter bales
¡ñ¡¡ Hydraulic locked gate ensures more convenient operation
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installation

Specifications

Model XTY-300WB7070 XTY-400WB7280 XTY-600WB10080
Main Motor Power 11kw 11kw 15kw
Cooling System N/A N/A N/A
Cycle Time (unload) 27s 19s 23s
Oil Reservoir 240L 240L 350L
Number of Belting 3lines 4lines 4lines
Wire Size Ø2.4-2.7 Ø2.4-2.7 Ø2.7-3.0
Feed Opening Size (L*W) 700*690mm 1000*700mm 1200*980mm
Chamber Size (L*W*H) 1700*690*690mm 2200*700*780mm 2400*980*780mm
Bale Size (L*W*H) 900*700*700mm 1000*720*800mm 1000*1000*800mm
Bale Density (OCC) 400-500kgs/m3 400-500kgs/m3 450-550kgs/m3
Throughput (approx./ depend on the raw material density and the skill of the operators) 0.5-1ton/h 0.5-1ton/h 1-2tons/h
Machine Weight 4tons 4tons 5.2tons
Machine Overall Dimension 4200*1100*1900mm 5500*1100*2000mm 5700*1800*2400mm
Feeding Device cyclone / conveyor cyclone / conveyor cyclone / conveyor
Conveyor
Feeding Width 1400mm 1400mm 1600mm
Speed 12m/min 12m/min 12m/min
Power 5.5KW 5.5KW 5.5KW
Weight 4.5tons 4.5tons 5tons
Overall Dimension 9000*1900*4200mm 9000*1900*4200mm 9000*2100*4200mm
Large-sized Semi Automatic Balers with Closed Gate
Large-sized Semi Automatic Balers with Closed Gate

¡¡

Usage

Specialized in recycling and compressing the loose materials like plastic film, PET bottles, plastic pallets waste paper, cartons, cardboards trims/scraps, etc.

Features

¡ñ¡¡ Heavy duty close-gate design for more tighter bales
¡ñ¡¡ Hydraulic locked gate ensures more convenient operation
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installation

Specifications

Model XTY-1000WB11085 XTY-1000WB110110
Pressure 100tons 100tons
Main Motor Power 30kw 30kw
Cooling System air cooler / water cooler air cooler / water cooler
Cycle Time (unload) 36s 42s
Oil Reservoir 1460L 1600L
Number of Belting 4lines 5lines
Wire Size Ø3.0-3.2 Ø3.0-3.2
Feed Opening Size (L*W) 1400*1050mm 1800*1050mm
Chamber Size (L*W*H) 3000*1050*830mm 3700*1050*1050mm
Bale Size (L*W*H) 1300*1100*850mm 1600*1100*1100mm
Bale Density (OCC) 500-600kgs/m3 500-600kgs/m3
Throughput (approx./ depend on the raw material density, strapping skill and material feeding speed) 1.5-3tons/h 2-6tons/h
Machine Weight 12tons 18tons
Machine Overall Dimension 7450*1600*2300mm 8200*1600*3500mm
Feeding Device Conveyor Conveyor
Conveyor
Feeding Width 1600mm 1800mm
Speed 12m/min 12m/min
Power 5.5KW 7.5KW
Weight 5tons 7tons
Overall Dimension 9000*2100*4200mm 9500*2200*4200mm
Small-sized Semi Automatic Balers with Cyclone for Packaging Plants
Small-sized Semi Automatic Balers with Cyclone for Packaging Plants

¡¡

Usage

Widely applied by packaging and printing plants whose capacity is less than 1 ton per hour for recycling waste cardboards/cartons trims, paper scraps etc.

Features

¡ñ¡¡ Open-end design for conveniently ejecting the bales out
¡ñ¡¡ Powerful cyclone is optional for rapid sucking scraps/trims from the corrugation production line
¡ñ¡¡ Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters
¡ñ¡¡ Particular anti-slide design of the machine makes nicer bales
¡ñ¡¡ Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals
¡ñ¡¡ The press heads are specially processed by planomiller, ensures the precise running of the ram
¡ñ¡¡ Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine
¡ñ¡¡ The heavy duty machine body makes sure only flat ground is required by the installation

Specifications

Model XTY-400WS7280
Main Cylinder Size Ø125
Main Motor Power 11kw
Cooling System N/A
Cycle Time (unload) 20s
Oil Reservoir 240L
Number of Belting 4lines
Wire Size Ø2.4-2.7
Feed Opening Size (L*W)< /td> 1000*690mm
Chamber Size (L*W*H) 1200*720*800mm
Bale Size (L*W*H) L*720*800mm (L is adjustable)
Bale Density (OCC) 350-450kgs/m3
Throughput (approx./ depend on the raw material density, strapping skill and material feeding speed) 0.5-1ton/h
Machine Weight 5tons
Machine Overall Dimension 4800*1500*2000mm
Feeding Device cyclone / conveyor
Large-Sized Full Automatic Two Ram Baler
Large-Sized Full Automatic Two Ram Baler

¡¡

Usage

Specialized in recycling and compressing the waste paper, plastic film, fabric etc, convenient for storage, saving labor cost.

Features

¡ñ Automatically compressing and baling, using PP strap to reduce baling material cost.
¡ñ With two rams design, compact machine structure occupying small space.
¡ñ Cyclone system or conveyor could both be the optional for feeding.

Specifications

Model XTR-1200W11075-75
Pressure 120T
Motor Power 55kw
Cooling System Air cooler/water cooler
Cycle Time 14 seconds
Oil Tank Volume 1900L
Number of Belting customized
Wire Size D3.0-3.4
Feed Opening Size(L*W) 2100*1076mm
Chamber Size(L*W*H) 4010*1100*750mm
Bale Size(L*W*H) 1500*1100*750mm
Bale Density(OCC) 450-550kg/m3
Throughput 13-17T/H
Machine Weight 21T
Machine Overall Dimension(L*W*H) 9080*4000*3530mm
Feeding Device Conveyor
